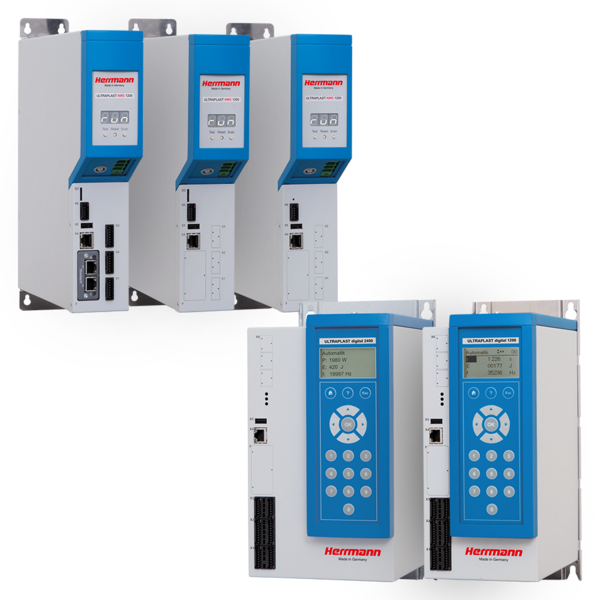

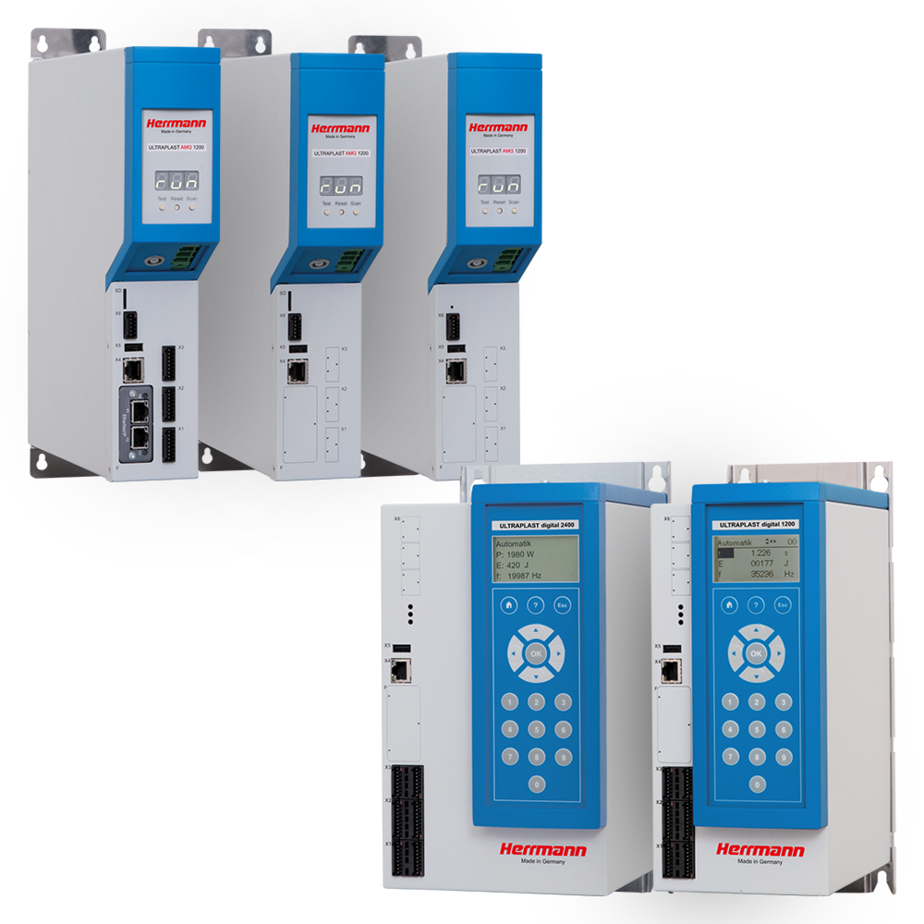

Heavy-duty ultrasonic generators for intermittent applications - The digital ULTRAPLAST product line is available in frequencies of 20 kHz, 30 kHz, and 35 kHz at a power range between 900 W and 6200 W. Programmable ramp up and ramp down times and infinitely variable adjustment of weld amplitudes are only some of the features of this product line. The ULTRAPLAST digital ultrasonic generator is integrated in all Herrmann Ultraschall series machines and systems.

DataRecorder G3

Recording, archiving, and analyzing more than 150 parameters with every weld process:

Real-time visualization of weld process graphs and trend diagrams
Communication of status information, measured values, limits, and parameters in MES systems via Ethernet (UDP)
Export of selected process data and weld graph data into the file system for further processing (CSV, ASCII formats)
Plug & Record: Connect with the network and simultaneously record process data from up to 16 generators of the ULTRA-X generation
100% data safety through continuous recording with monitored data buffering
Fast navigation through previously archived data

The DataRecorder software can be used with all ultrasonic generators of the ULTRA-X generation.

Perfect Product

Herrmann product portfolio

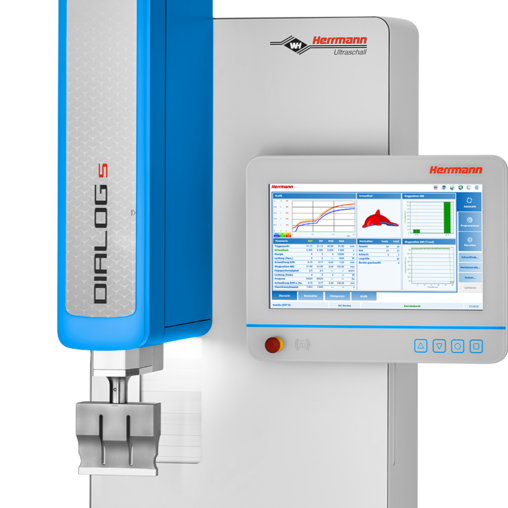

From complete ultrasonic welding machines to individual welding components that can be perfectly integrated into existing systems: Our wide-ranging product portfolio offers you everything you need for an optimal welding experience. All products are 100% "Made in Germany". We will also be happy to advise you on the development of an individual solution that exactly fits your requirements!

Ultrasonic welding basics

Plastic welding

Whether TV remote controls, print cartridges or children's toys – many of our everyday objects are made of plastic. To bond the parts safely, firmly and (if required) tightly together, they are sealed and joined using ultrasonics. To bond the parts safely, firmly and (if required) tightly together, they are sealed and joined using ultrasonics.
